Service
Urethane casting.
Urethane casting provides end-use, rigid plastic parts or rubber parts with production-level quality. We have the ability to make parts up to three feet in diameter, in any PMS color, in as soon as 10 days.
Capabilities

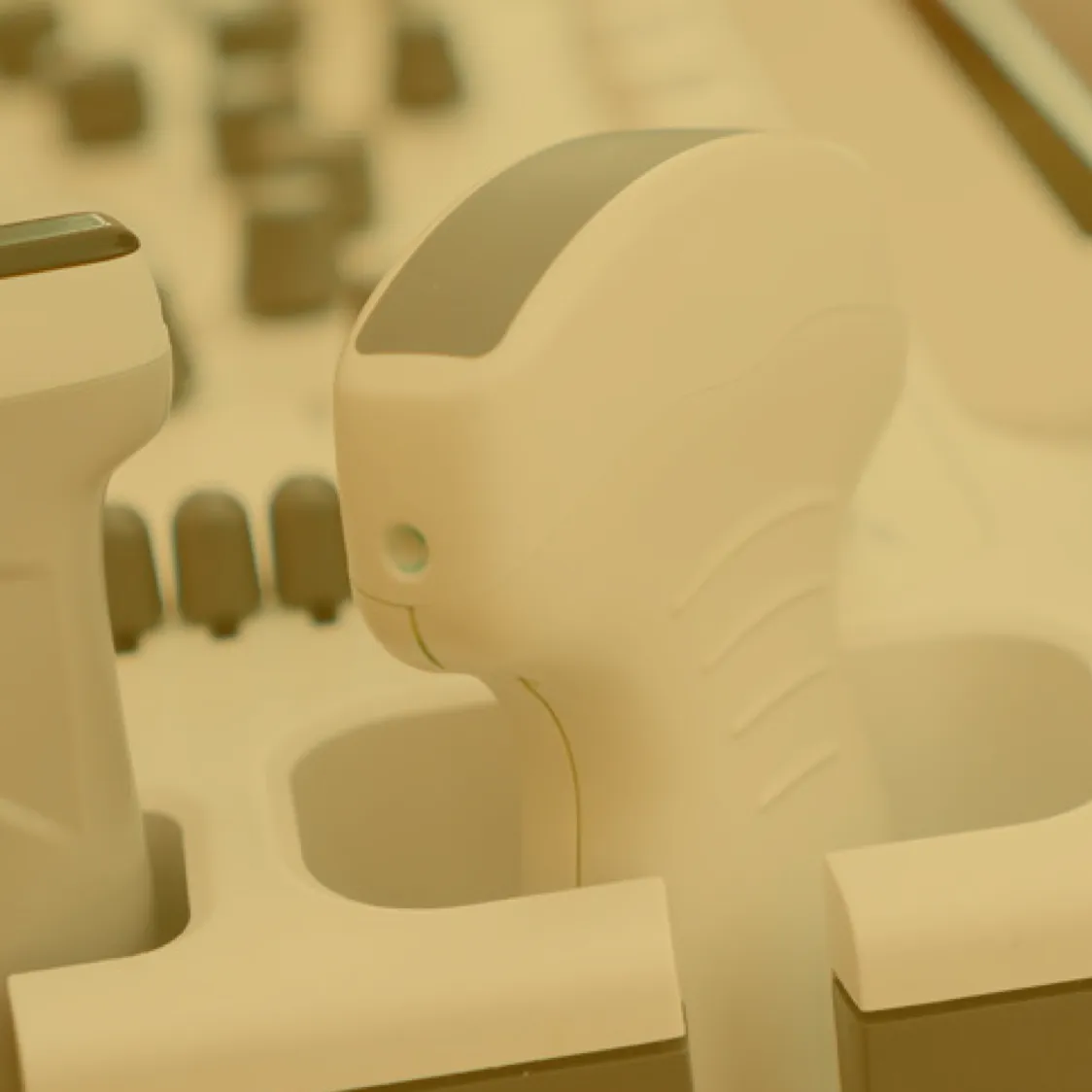

Production-grade parts, low-volume economics.
Axtonne has been doing RTV (Room Temperature Vulcanization) casting since 1970. Pattern molds in 3–7 days, parts in 7–21 days.
- 01
Realistic Prototype Parts
Axtonne has done RTV (Room Temperature Vulcanization) casting since we were established in 1970. Typical lead time for pattern molds is 3–7 days and turnaround on parts is 7–21 days.
- 02
Painting
Models to meet your specific cosmetic requirements. We can match any PMS color. Whether you need a glossy or matte finish, we can meet your requirements.
- 03
Assembly
We deliver value-add assembly functions whether it be inserts, screws, or simple glue assemblies. We have the expertise to meet your specific needs and requirements.
- 04
Color Options
Naturally, a urethane may be amber to milky-white in color. Polyurethanes can be blended with pigments to achieve a variety of colors.
Materials
Urethane casting materials.
Cast urethanes simulate common production plastics, from rigid ABS-like housings to rubber-like seals. Tell us the target material and finish, and we match the right resin for your part.

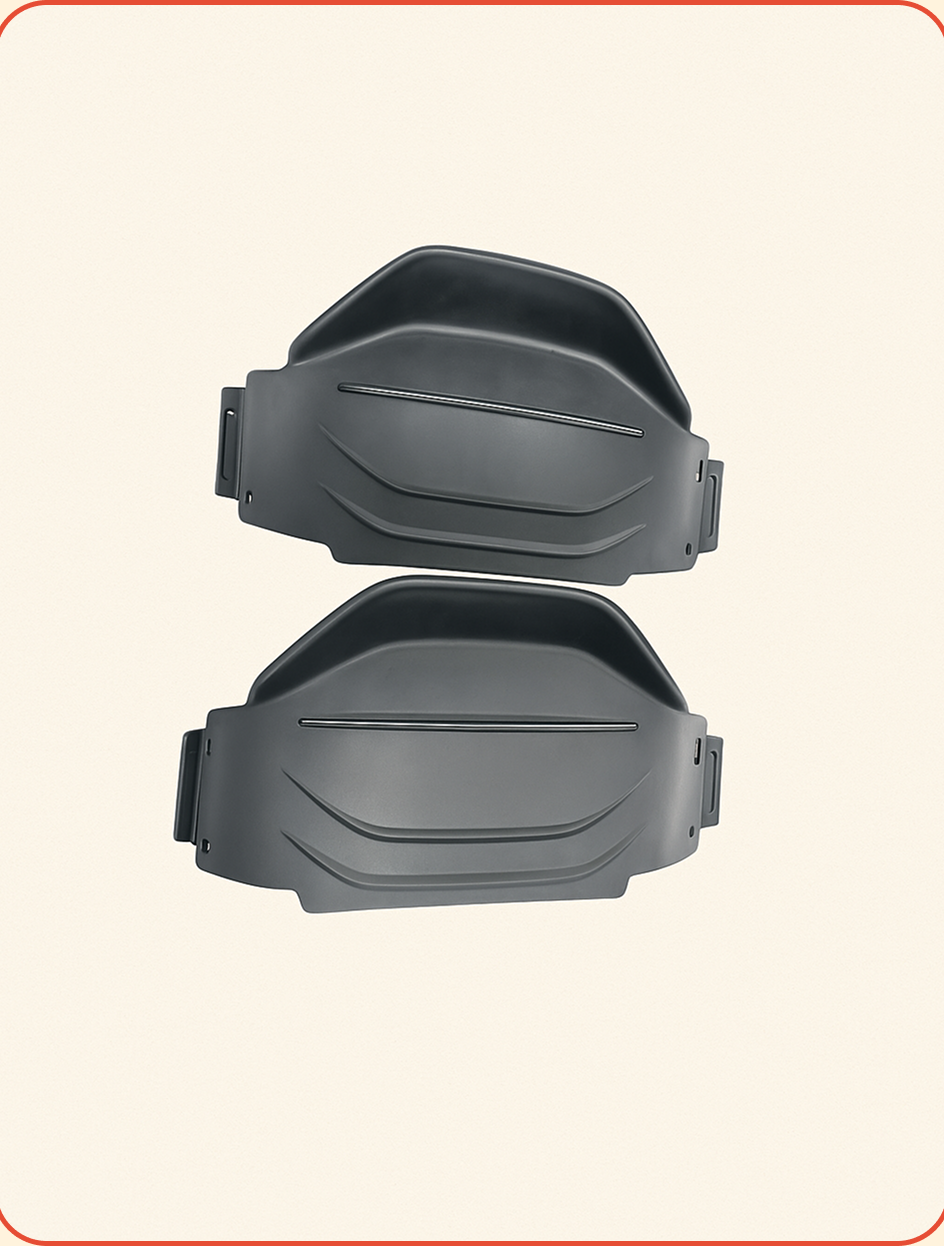

UP-5690
- Simulates
- ABS
- Type
- Rigid
- Impact Resistance
- Good
- Heat Resistance
- Good
- Surface Finish
- Standard
- Use Case
- Functional prototypes
Specifications
Casting specs.
Confirmed size, shrinkage, durometer range, and lead-time specs.
Durometer Range
- Flexible urethane
- Hardness35A – 95ANotesSoft and rubber-like through hard, semi-rigid.
- Rigid polyurethane
- Hardness65D – 85DNotesRigid, structural parts.
- Natural urethane
- HardnessVariesNotesAmber to milky-white; pigmentable to any PMS color.
Specifications
- Process
- RTV (room-temperature vulcanization)
- Maximum part size
- Up to 3 ft diameter
- Volume ceiling
- Up to 200 parts
- Typical draft
- 0.5–1°
- Minimum wall
- 1.0 mm (0.040"); 1.5–2.5 mm recommended
- Linear tolerance
- ±0.15–0.50 mm by size (rigid tighter)
- Angle tolerance
- ±1.5°
- Hole tolerance
- ±0.10 mm
- Shore A tolerance
- ±10A
- Typical shrinkage
- About +0.15%
- Pattern mold lead time
- 3–7 days
- Part lead time
- 7–21 days
- Parts per mold
- 20–50 (typical)
- Color & finish
- Any PMS color; gloss or matte
Every figure above is a confirmed Axtonne spec, and we confirm each one against your actual geometry on the quote. For cross-process tolerance, wall thickness, and draft comparisons, see the design & tolerance guide.
Certifications
Quality is the system, not the slogan.
ISO 9001 Certified
Quality management system ensuring we meet customer needs within statutory and regulatory requirements.
ISO 13485 Certified
Quality management system demonstrating our ability to provide medical devices and related services.
Satisfaction Guarantee
Our internal promise to customers that we will deliver above and beyond any other plastic products manufacturing company.
24–48 Hour
Quote
Turnaround
Special Offer: Receive a free DFM with every quote. Contact us to learn more.
Hear From Our Customers
Great organizations rely on Axtonne.
Marcel BothaCEO, 10XBetaOur high-speed development partnerships for Strongarm Technologies and the Spiro Ventilator for New York City stood out. Both these projects seem impossible in terms of time, and both were delivered because of their can-do attitude.
FAQ
Frequently asked questions.
Got a question? We've got answers. If you have something else, email sales@axtonne.com.
Urethane casting (also called RTV, Room Temperature Vulcanization) uses a silicone mold made from a master pattern to produce end-use plastic and rubber parts. It's the right fit for low- to mid-volume runs where injection molding tooling isn't economical.
Get Started
Get A Quote.
Let us impress you. Share your files with us and we will get back to you same day or next day, with pricing, lead time, and DFM feedback.
